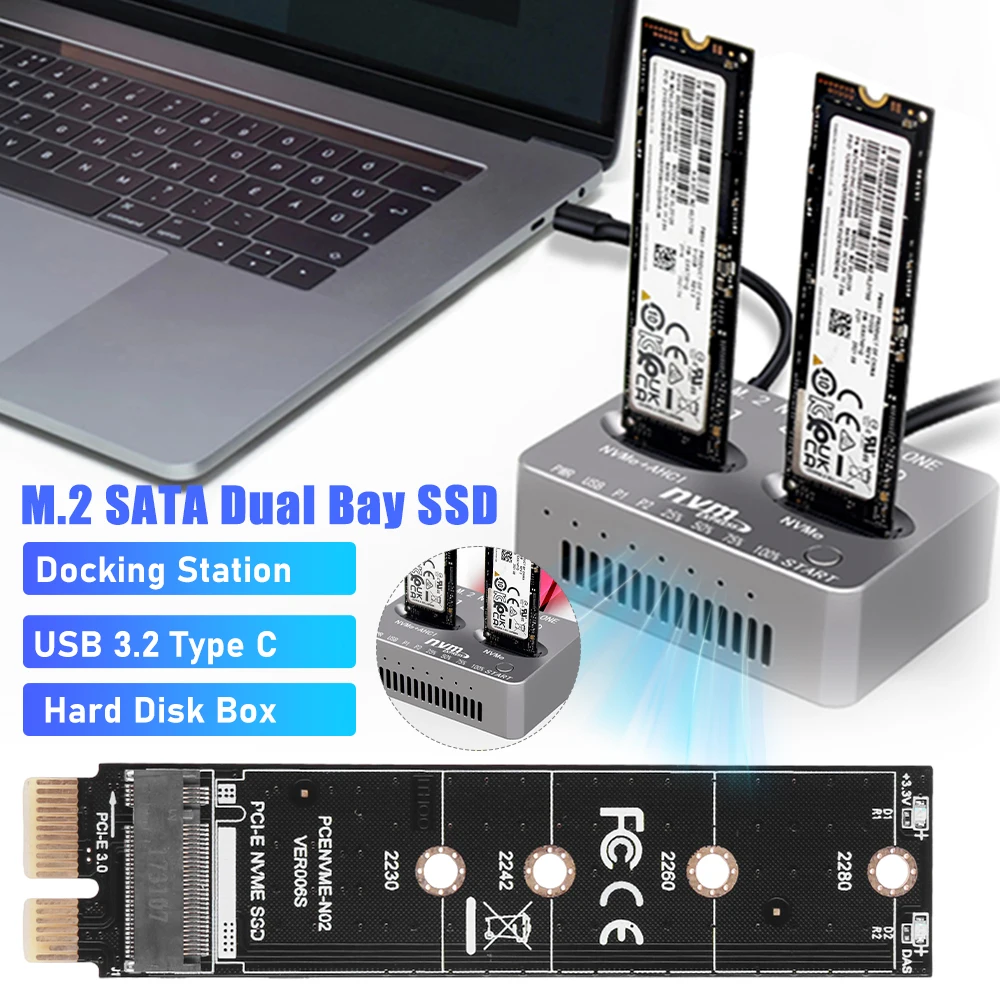

NVME Docking Station Gen2X 20Gbps Dual-Bay M.2 NVME SSD Clone USB3.2 Type C External Hard Disk Box M/B M Key M.2 M.3 NVME PCI-E

Specification:


Origin: Mainland China


Type: Hard Drive Adapters


Model Number: M.2 NVME SSD Clone

Product Size: 70.00×49.00×22.00mm2.76×1.93×0.87inch
Colour: Grey
Model No: PH8586U
HDD Interface: M Key, B&M Key
Input Interface: USB3.2 Type-C Gen2X 20Gbps
Support System: Windows/Mac/Linux
Protocol: M.2&M.3 NVME PCI-E Protocol
Main Control Chip: JMS586U
Transmission speed: 20Gbps
Material: Aluminium alloy shell
Support 2 NGFF M.2 M -Key NVME protocol SSD;
Support P1 location AAHCI protocol SSD,MAC 2013/2014/2015 12+16Pin SSD,Macbook Air RetinaMac ProIMac;.
Support Type-C USB 3.2 Gen2x2,Theoretical transfer rate 20Gb/s;.
Support NVME To NVME protocol SSD offline cloning;
Support AHCI protocol To NVME protocol SSD offline cloning;
Support PD protocol 5V-20V Type-C power adapter.
Support QC protocol 5V-12V Type-C power adapter;
Interface description:
Type-C: adopts Type-CUSB GEN2x2 data transmission interface;
PD 5V-20V: adopting Type-C power supply interface.
Supporting PD 5V-20V power supply adapter.
Support QC 5V-12V power adapter;
P1&P2: Adopt NGFF M.2 M-Key upright portable interface;
Indicator light description:
PER: white power indicator, switch on the power white indicator light, switch off the power white indicator light off;
USB: emerald green + red, Type-C USB GEN2x2 data link normal is emerald green indicator light, USB data is not connected to the red indicator light;
P1: emerald green P1 position SSD status indicator, when the P1 position SSD link is normal catalyse the city indicator light;
P2: emerald green P2 position SSD status indicator, when the P2 position SSD link is normal is emerald green indicator light;
25%, 50%, 75%, 100%: blue indicator, mode and cloning progress;
Offline cloning instructions for use:
First, P1 position access Yuan data disc, support NVME protocol and AHCI protocol SSD (Note: P1 position using MAC12 + 16Pin AHCI protocol SSD need to use an adapter card to transfer the SSD to NGFF M.2 M-Key gold finger);
Second, P2 position access to the cloning target disc, support NVME protocol SSD, capacity must be equal to or compound the capacity of the source data disc;
Three, access to Type-C power adapter, lightly press the power switch to turn on the power. PWR white power indicator light, do not need to link Type-C USB GEN2x2 cable;
Wait for a few seconds for the P1 and P2 green LEDs to light up, indicating that the master has identified the P1 source data disc and the P2 clone target disc;
Five, long press the "SATRT" button for 5 seconds, 25% -100% of the four blue lights flashing continuously, enter the cloning mode, press the "SATRT" button again, 25% -100% of the four blue lights into the back and forth running just when the data copy progress reaches 25%. When the progress of data copying reaches 25%, 25% blue indicator light is always on, 50%-100% back and forth is just running, know that 100% is always on means that the cloning is completed;
